REGUPOL cargo tool GBS
Accessories
This load securing tool is for protecting webbing straps and increases the distribution of tension force.
The REGUPOL cargo tool GBS webbing protector has three functions in one:
- lt ensures that well-functioning tension belts do not wear, fray or even break on the edges of the loads.
- The belt's flexibility enables it to adapt perfectly to the angles of the load edges, leaving no hollow space underneath the belt.
- lt ensures that its smooth top surface increases the transmission value k, which is used as the basis for calculating the load securing rate of 1.8.
This means that in most cases, it's not necessary to use a second ratchet on the other side of the load. However, please make sure that the REGUPOL cargo tool GBS is not inadvertently fitted with the smooth backing side facing downwards and always take the relevant transfer factor into account.

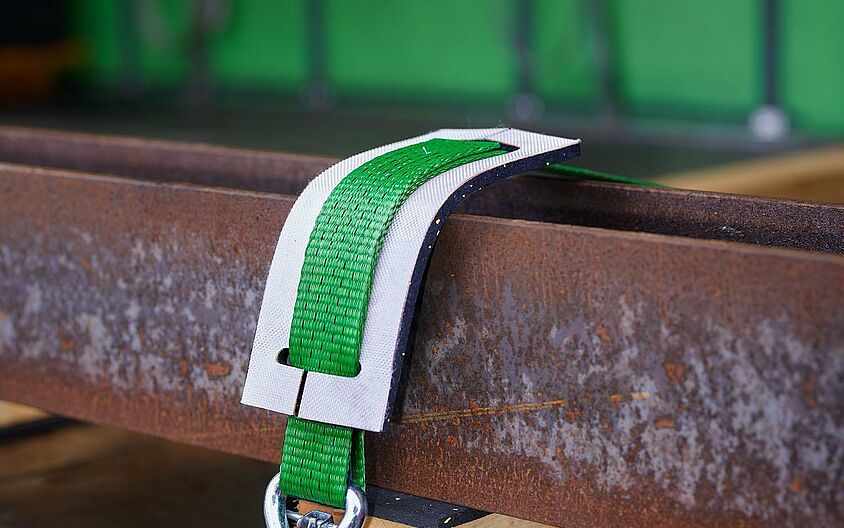

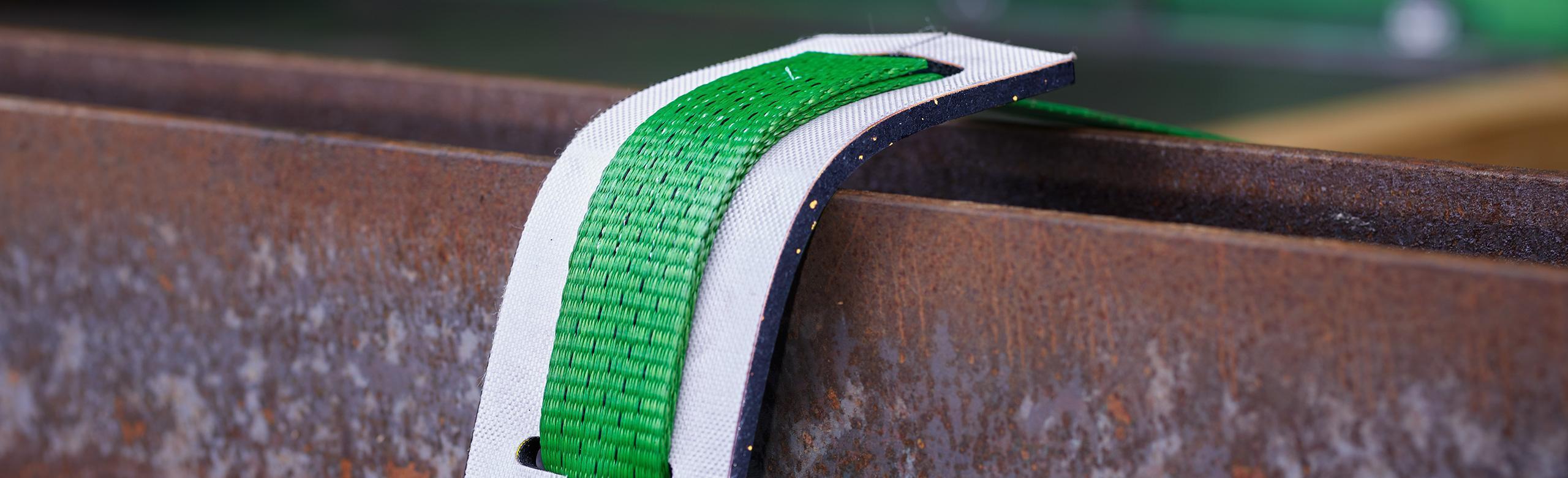

Adapts perfectly to the edges of the load
The REGUPOL cargo tool GBS provides wear protection for webbing straps, increases and compensates the strap's force distribution and adapts it perfectly to the edges of the load.
Features
- Reusable, long-lasting, resilient
- Smooth, low-friction backing surface
- High-friction face surface
- Easy disposal
Technical Specifications
Application

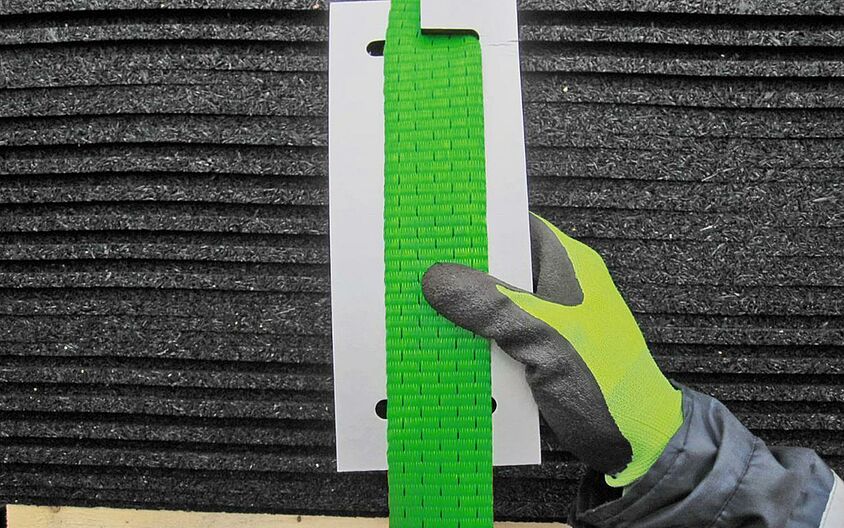

When lashing down the load, they are placed underneath the webbing straps, on the edges of the cargo.
Dimension
250 x 100 x 8 mm
Material
Underside: REGUPOL cargo mat 1000® elastomer compound anti-slip mat made of synthetic rubber and polyurethane.
Top side: smooth, low-friction technical fabric made of polyester, special high-strength adhesive.
Calculated force transmission value
Transmission value k = 1.8 when using only one ratchet,
in acc. with VDI 2700
Downloads
Your contact at REGUPOL
We're here to help.
Daniel Anasson
REGUPOL Australia Pty. Ltd.
Sales Team Australia
This is REGUPOL safe
lts robust underside, smooth backing surface and its flexibility give our webbing protectors REGUPOL cargo tool GBSa triple safety bonus: lt protects the webbing strap against wear, increases and distributes tension belt force, as well as adapting optimally to the load edges. The bright color of the belt protector's face side makes it easily recognisable, even in bad light. Robust and flexible with a smooth, low-friction backing surface: this intelligent combination makes our webbing protector REGUPOL SAFE.
