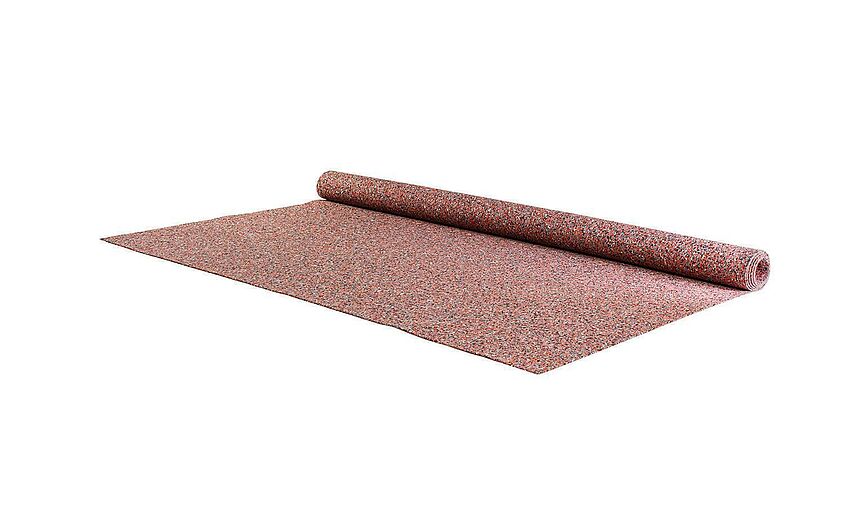

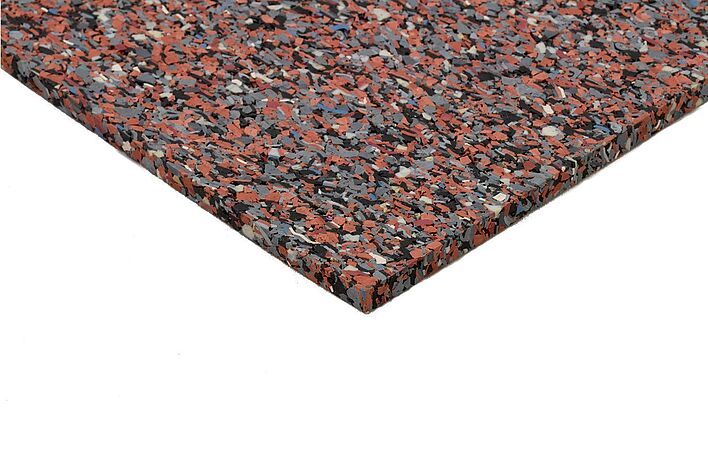

REGUPOL cargo mat 9510®
Our light heavyweight champion
The REGUPOL cargo mat 9510® is used for transporting sensitive loads, as it resists the marking of loaded cargo, due to its unique composition.
REGUPOL cargo mat 9510® is our anti-slip mat for heavier loads of up to 350 t/m2. This mat will broaden your range of applications, but its most outstanding feature is that its colour doesen't rub off on most cargo transported. So if any sensitive goods such as architectual steel, concrete and more, have to be transported directly on REGUPOL cargo mat 9510® it is the one to choose.
Its bright colour makes it easy to distinguish from other REGUPOL anti-slip mats, ruling out any confusion in the often hectic loading porcess.
REGUPOL cargo mat 9510®
The REGUPOL cargo mat 9510® is suitable for sensitive loads and leaves no stains on the cargo. It can be used for transporting cargo of up to 350 t/m².
Features
- Reusable, long-lasting, resilient
- Defined load ranges, reliable friction coefficients
- No black streaks or stains
- Contamination-tolerant, easy disposal
Technical Specifications
Material
Elastomer compound made of synthetic rubber and Polyurethane
Maximum load
Up to 350 t/m2 = 3.50 N/mm2 at 8 mm thickness
based on DIN EN ISO 3386-2. Test sample size 60 x 60 mm
Dimensions
standard rolls: 1250 x 20,000 x 8 mm
custom strip / mat sizes available on request
Coefficient of friction
Lab tested value 0.97 µ
Value specified by VDI 2700 - part 14, 0.92 µ
Value calculated in practice 0.6 µ in acc. with VDI 2700 - part 15
Tensile strength
0.60 N/mm² minimum
Elongation at breack
60 % minimum
Stock
1250 x 20,000 x 8 mm
Rolls
Custom Strips and Mats
Available on request
Downloads
Your contact at REGUPOL
We're here to help.
Daniel Anasson
REGUPOL Australia Pty. Ltd.
Sales Team Australia
This is REGUPOL safe
And even more so than usual. In the tests by the Fraunhofer Institute REGUPOL cargo mat 9510® achieved the top result for sliding friction of more than 0.9 µ. Compared with the usual calculated value of 0.6 µ, that's an improvement of over 50%. So, what does this mean for you in practice? lt gives you room to manoeuvre, if exceptional conditions on the load bed have a negative impact on securing the load. Because REGUPOL safe means having something in reserve rather than having to compromise.
