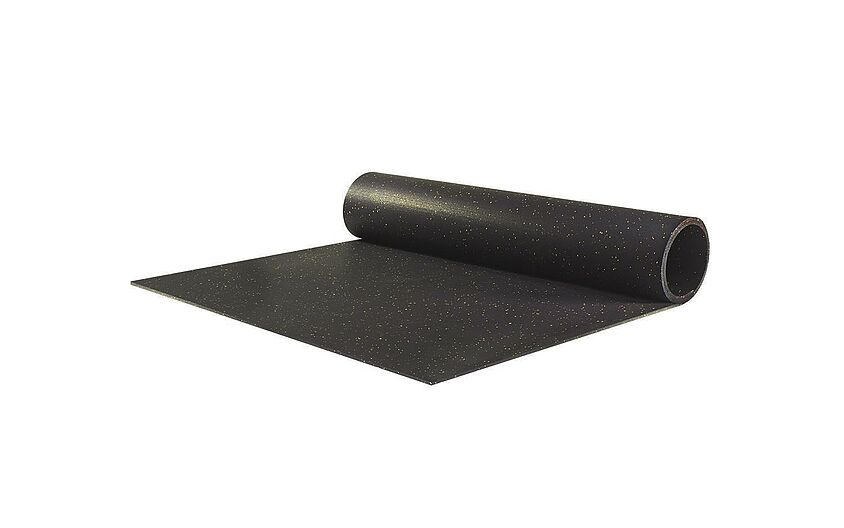

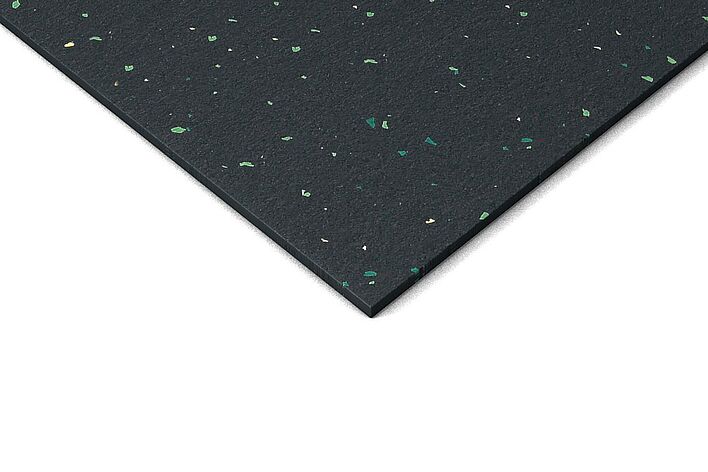

REGUPOL cargo mat 1000®
Our heavyweight champion

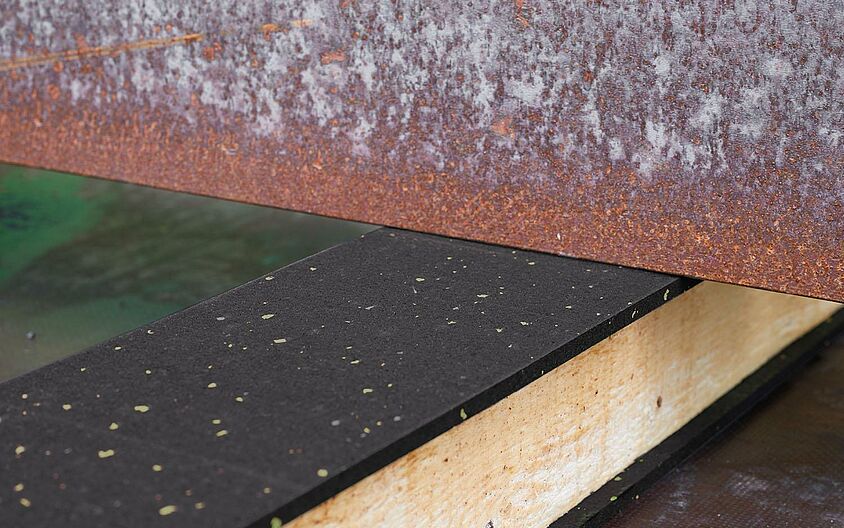

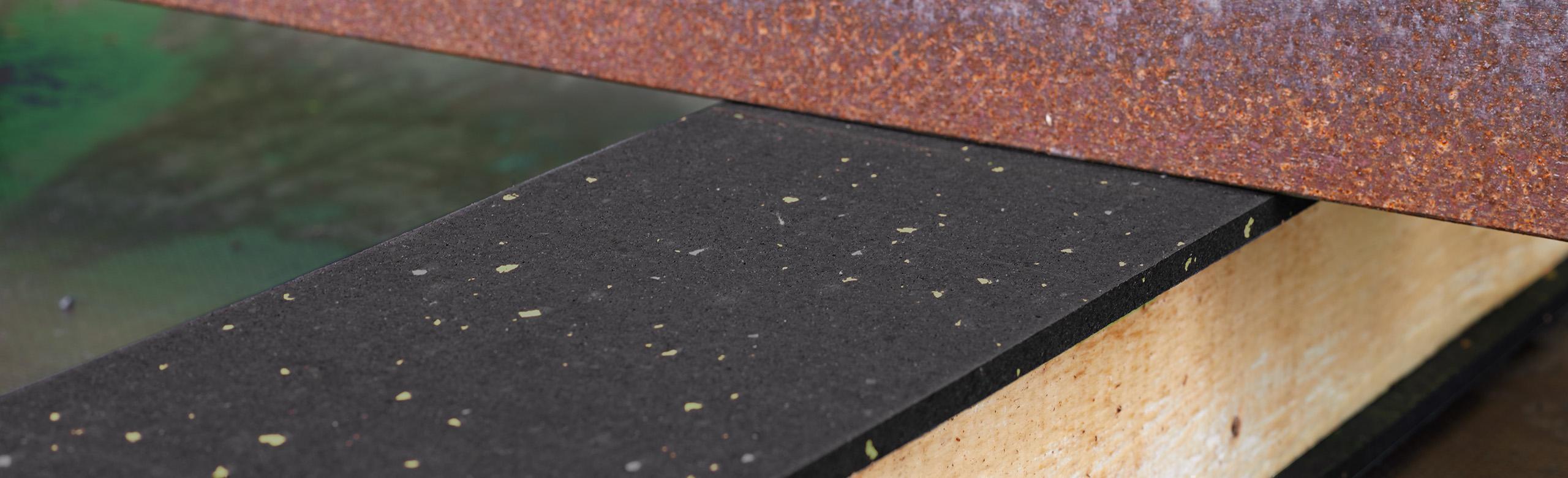

The REGUPOL cargo mat 1000® is used for securing heavy loads and is highly resistant to extreme weather conditions.
REGUPOL cargo mat 1000® does its best work where other anti-slip mats fail to achieve the required results. Even under extreme weather conditions, REGUPOL cargo mat 1000® performs to the highest safety standards. In both wet and dry conditions REGUPOL cargo mat 1000® exceeds the values of 0.6 µ, as tested by Engistics Australia.
This is the performance our heavyweight champion is capable of: fighting to ensure that heavy-loads of up to 630 t/m2 are safely and reliably secured, even under the most adverse conditions.
REGUPOL cargo mat 1000®
The REGUPOL cargo mat 1000® can be used in extreme weather conditions and is also suitable for heavy duty transport. In addition, the anti-slip mat can also be used for transporting general cargo and light loads, giving this mat a highly flexible range of applications.
Features
- Reusable, long-lasting, resilient
- Defined load ranges, reliable friction coefficient
- Suitable for extreme weather conditions
- Contamination-tolerant, easy disposal
Technical Specifications
Material
Elastomer compound made of synthetic rubber and Polyurethane
Maximum load
Up to 630 t/m² = 6.30 N/mm² at 8 mm thickness
based on DIN EN ISO 3386-2. Testsample size 60 x 60 mm
Dimension
standard rolls: 1250 x 25,000 x 8 mm
standard rolls: 1250 x 20,000 x 12 mm
standard strips: see stock tab
custom strip / mat sizes available on request.
Coefficient of friction
Lab tested value 0.86 µ
0.82 µ in acc. with VDI 2700 - part 14
Value calculated in practice 0.6 µ In acc. with VDI 2700 - part 15
Tensile strength
0.60 N/mm² minimum
Elongation at break
60 % minimum
Stock
1250 x 25,000 x 8 mm
Rolls
1250 x 20,000 x 12 mm
Rolls
1250 x 100 x 8 mm
Strips
2400 x 100 x 8 mm
Strips
1200 x 100 x 4 mm
Strips
2400 x 250 x 8 mm
Strips
1200 x 250 x 8 mm
Strips
2400 x 300 x 8 mm
Strips
Custom Strips and Mats
Available on request
Downloads
Your contact at REGUPOL
We're here to help.
Daniel Anasson
REGUPOL Australia Pty. Ltd.
Sales Team Australia
This is REGUPOL safe
The REGUPOL cargo mat 1000® maintains its function where others have long since hoisted the white flag. What do we mean? We mean when heavy loads transfer high point loads or while spray mixed with road salt soaks the loading bed at -15°C, REGUPOL cargo mat 1000® passes the assesment whilst many others failed. As tested by the German Federal Highways Research Agency.
